Newport Beach Navien Tankless Water Heater Installation: A2 or S2, and What the Job Really Involves
How Repipe OC plans a Navien tankless water heater installation in Newport Beach: A2 vs S2, gas checks, sealed venting, condensate, and permits.
If a Navien tankless water heater installation is on your list for your Newport Beach home, you have probably already read that Navien makes efficient condensing units with optional built-in recirculation. Newport Beach runs from beach cottages with almost no setback to large hillside homes with high demand, and a Navien plan looks different at each end.
This page covers what actually decides how well a Navien works in your house: model choice, gas supply, venting, condensate, permits, and the condition of the pipes that will feed it.
Local factors in Newport Beach
In Newport Beach, the biggest variable we see is not the heater but the house around it. Some homes in Balboa Peninsula, Corona del Mar, Harbor View Hills, Lido Isle, Newport Heights have gas capacity to spare; others share one small branch among several appliances. City of Newport Beach Water supplies the water, and its minerals make easy descaling access a must.
We check both before recommending a Navien size, so the unit you buy is the unit your home can support.
What a Navien changes compared with your old tank
| Question | 40–50 gallon tank | Navien condensing tankless |
|---|---|---|
| How is water heated? | Stored and kept hot | Heated as it flows |
| Where does it go? | Floor of garage or closet | Wall-mounted, sealed combustion |
| Exhaust | Metal flue, hot exhaust | Cooler exhaust, plastic vent per manual |
| Extra connections | Usually none | Condensate drain and 120-volt power |
| Faster hot water? | No | Possible with A2 recirculation models |
The last two rows surprise people most, and they are where a careful install earns its keep.
Venting a condensing Navien
Because a condensing heater pulls so much heat out of its exhaust, the exhaust leaves cool enough to run through plastic vent pipe of the type and length the installation manual allows. The termination outside still has to keep set distances from windows, doors, air intakes, and walkways, and the inspector checks those clearances.
Re-using an old metal flue for a condensing unit is not an option; the vent system is new and sealed. We show you exactly where the vent will exit the house before we drill.
Should your pipes be replaced at the same time?
A new heater changes flow and pressure through the house. If the existing supply lines are thin, pitted copper, corroding galvanized, or polybutylene, those changes can be enough to start the next leak. In Newport Beach, we see plenty of homes where the heater and the piping reached the end of their lives within a few years of each other.

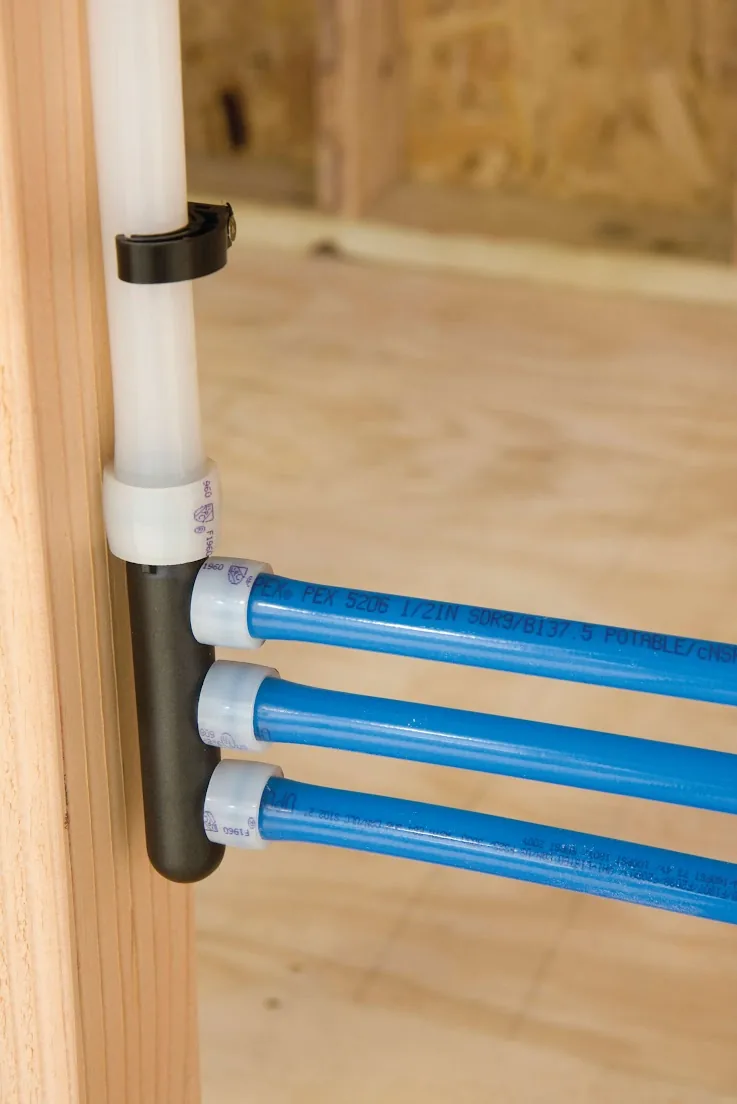

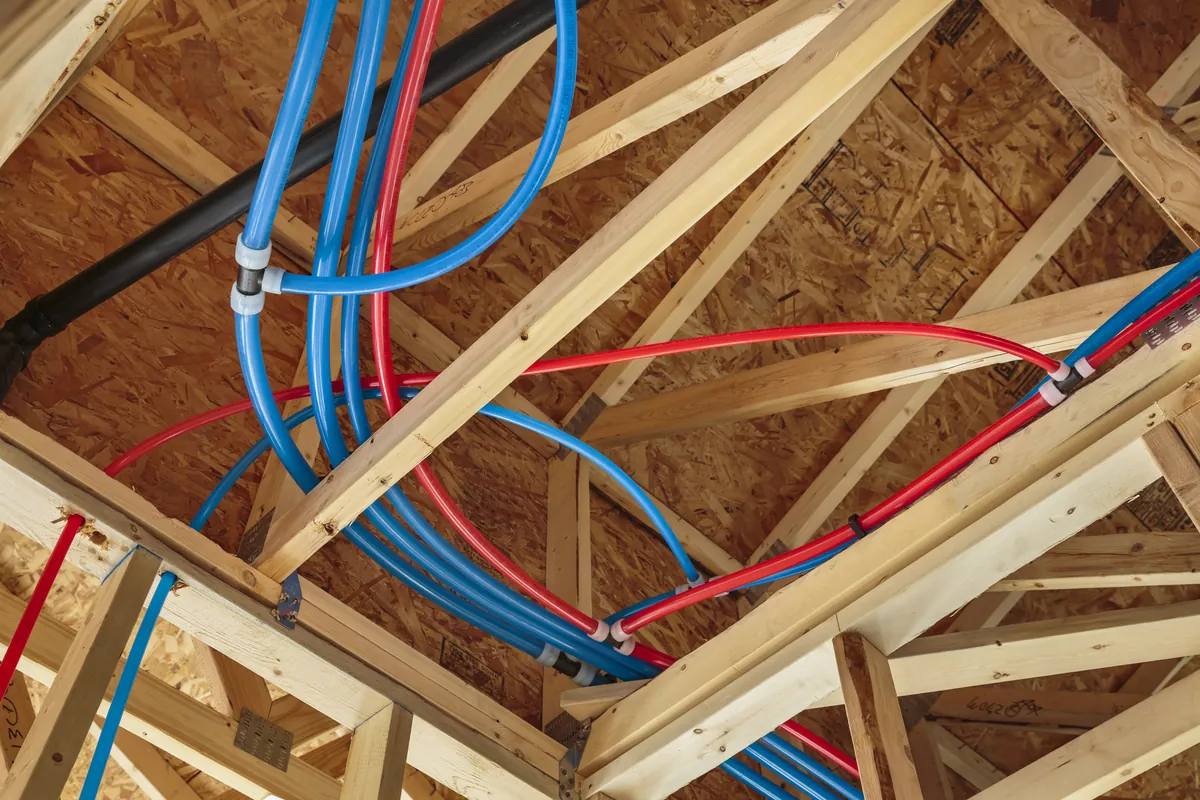

Repipe OC replaces whole-house supply piping with PEX-A expansion tubing (ASTM F1960 fittings), not crimp PEX-B. Doing it with the Navien install shares the access, the permit, and the crew visit.
Navien notes from Newport Beach jobs
Balboa Peninsula and Lido Isle homes have narrow side yards where termination clearances to a neighbor’s window can eliminate several vent locations. Corona del Mar and Harbor View Hills homes have room but higher demand, so we often size toward the top of the NPE-2 range and plan gas upgrades. In Newport Heights, older piping makes a repipe conversation common.
NPE-2 A2 versus S2: the choice most buyers face
Navien's NPE-2 condensing line comes in two flavors. A2 models include a small internal buffer tank and a recirculation pump, a package Navien calls ComfortFlow. S2 models leave those out and cost less. The number in the model name rises with capacity, so a two-bath condo and a large family home will land on different sizes within the same series.
If a long wait for hot water is your main complaint, the A2 is usually worth the step up. If the heater sits close to the bathrooms, an S2 often does the job.
A repipe makes the best recirculation possible
When the supply lines are being replaced anyway, adding a dedicated hot-water return is a small extra step. That gives a Navien A2 the cleanest recirculation setup: no warm water in the cold line, and hot water at the far bathroom in seconds. It also lets us move the heater closer to where the hot water is used.
For Newport Beach homes already planning a PEX-A repipe, this is often the strongest argument for doing the heater and the piping together.
Ownership checklist for the first few years
- Flush the heat exchanger on the interval the manual suggests for your water
- Rinse the inlet filter screen during each flush
- Keep the vent termination clear of plants, stored items, and debris
- Check that the condensate line and neutralizer are flowing
- Write down any error code and when it appeared
- Keep the model, serial number, and permit record with your home files
Natural gas, propane, and the right configuration
Most Newport Beach homes run on natural gas from the utility. A few properties use propane, and a tankless heater has to be set up for the fuel it will burn, following the manufacturer's instructions. Ordering or configuring the wrong gas type is a mistake that shows up on day one.
We confirm the fuel, pipe size, and supply pressure on the site visit and note them on the estimate, so the unit arrives configured for your house.
FAQ: Navien tankless water heater installation
Can a Navien go where my tank is now? Often, if there is a vent route and a place to drain condensate.
Will my half-inch gas line work? Sometimes. We measure the run and check the manual before saying yes.
Do I need a permit? Yes, in every Orange County city we serve.
Do you sell water softeners? No. Filtration is optional and handled as a separate discussion.
Next step for Newport Beach homeowners
Get a free, written Navien install plan for your Newport Beach property: (949) 524-2362 · [email protected] · https://repipesoc.com. Repipe OC, 23821 Hillhurst Drive, Laguna Niguel, CA 92677. Licensed C-36 #1087885.
